| PRODUCT INFORMATION |
Italy Dual Control Bath Set
B&M SKU: CRIIT16572MQ | Cristina code: CRIIT16572MQ
Product overview

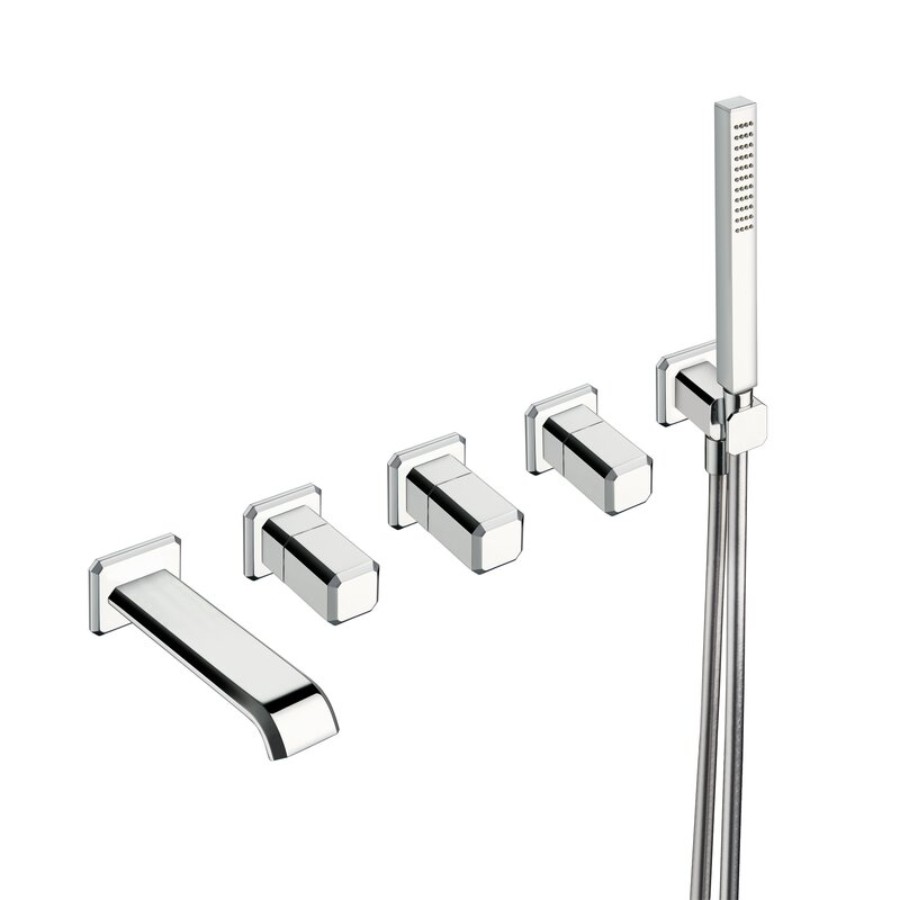

External dual-control wall-mounted bathtub set, with mechanical mixing, 2-outlet diverter, spout length 180 mm, anti-scale hand shower, fixed support, water outlet, long-life hose, for completion with recessed part CRICS115 (controls on the sides). This SKU selects Polished Black Chrome with Polished Marquinia control material.
Product details
Item | Detail |
Series | Italy Series |
Manufacturer model | CRIIT165 |
B&M SKU and supplier code | CRIIT16572MQ |
Selected body finish | 72 Polished Black Chrome |
Selected control material | Polished Marquinia |
Command | Bicomando |
Installation | Wall |
Typology | external bath trim set |

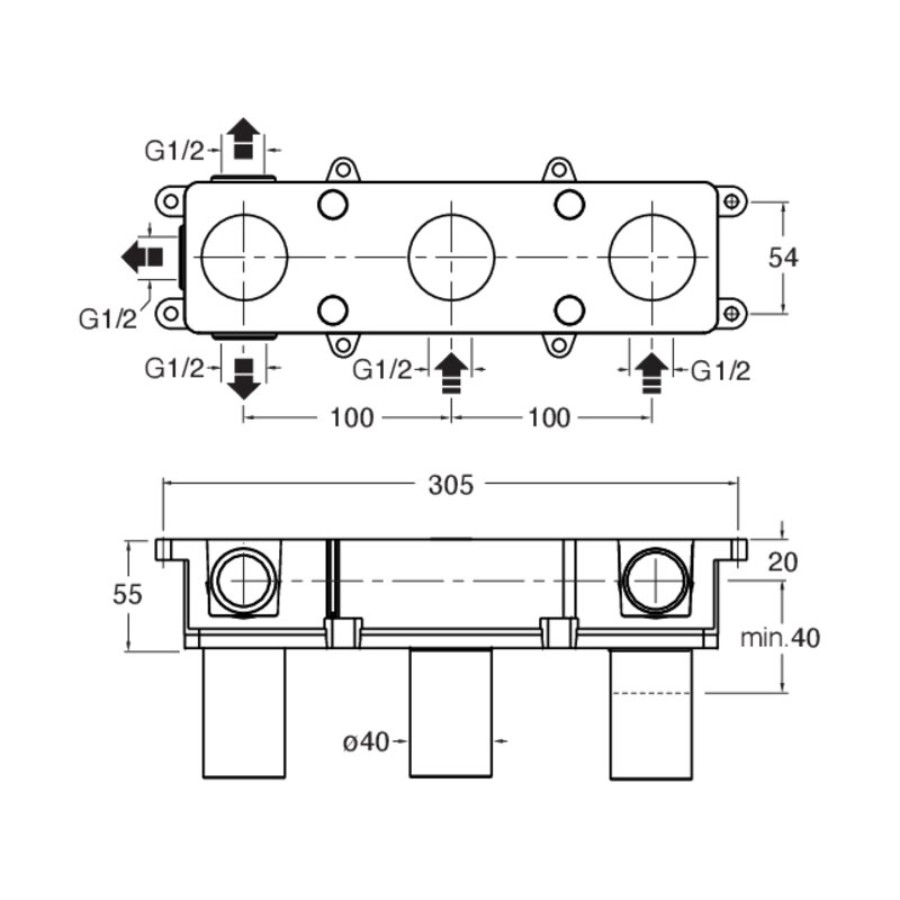

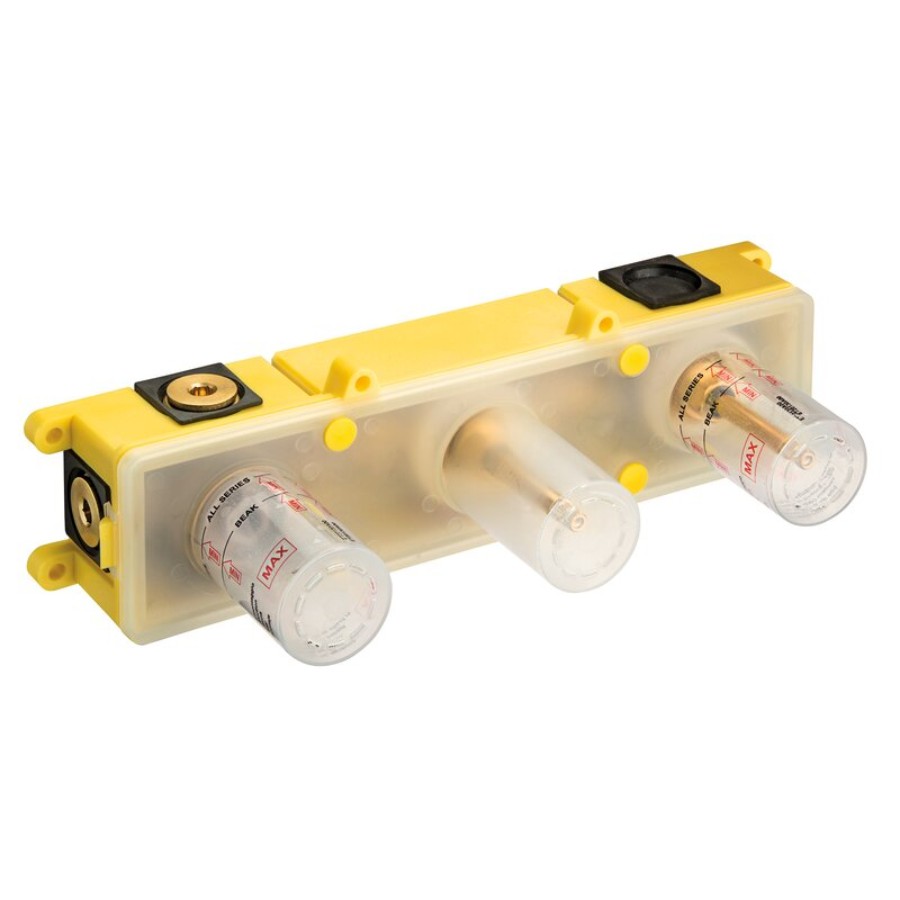

Recessed body sold separately | CRICS115; select the required layout |
Technical Information and Dimensions
Use this sheet to identify the product and plan the installation. Manually check dimensions against the supplied product before making any cutouts for installation.
Item | Detail |
Spout projection | 180 mm |
Spout flange size | 80 x 60 mm |
Control flange size | 60 x 60 mm |
Control centre spacing | 100 + 100 mm |
Hose length | 1500 mm |
Water outlet connection | G1/2 |
Published flow rate | 9 l/min; reference pressure not stated |

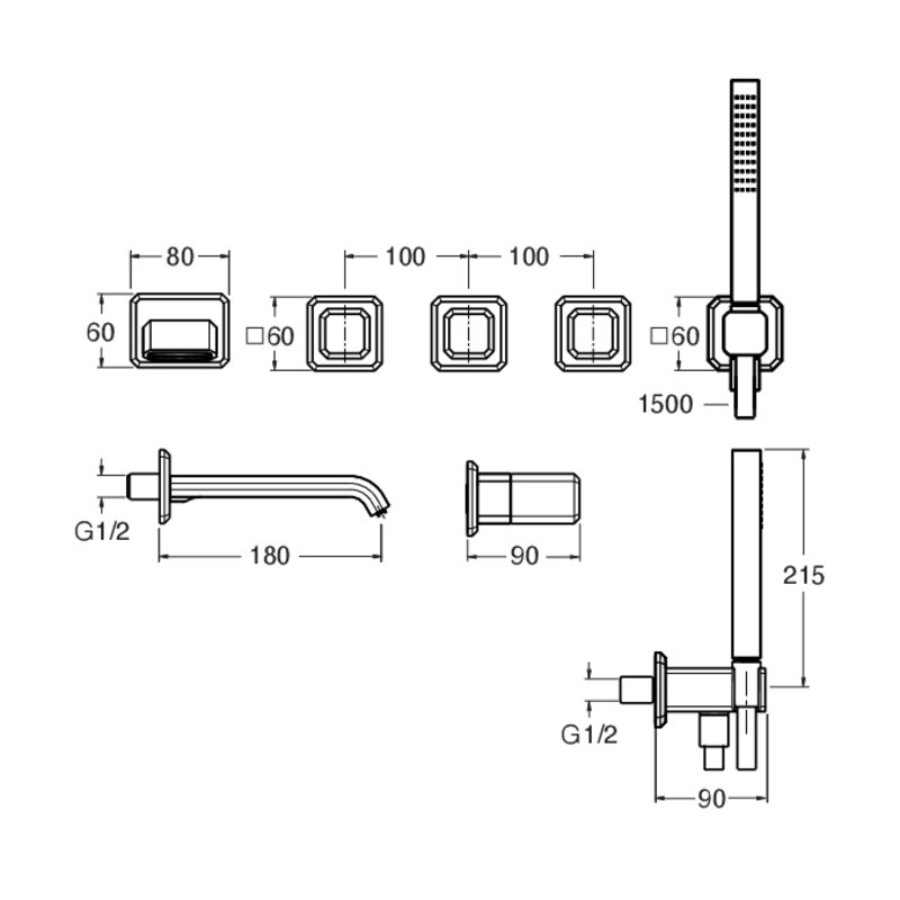

Dimension view
Dimensions in millimetres unless a thread is specified. Fit the actual supplied product and follow its installation instructions.
Selected finishes and knob options
The IT165 options below are separate complete B&M SKUs. The visual samples are Cristina's original finish and stone swatches.
51 Chrome |
72 Polished Black Chrome |
CC Polished Calacatta |
MQ Polished Marquinia |
VG Polished Guatemala |
Without a letter suffix the knob matches the metal body finish. CC, MQ and VG select the stone knob while the body retains its finish code.
Complete SKU | Body finish | Control material |
CRIIT16551 | Chrome | Matching metal knob |
CRIIT16551CC | Chrome | Polished Calacatta |
CRIIT16551MQ | Chrome | Polished Marquinia |
CRIIT16551VG | Chrome | Polished Guatemala |
CRIIT16572 | Polished Black Chrome | Matching metal knob |
CRIIT16572CC | Polished Black Chrome | Polished Calacatta |
CRIIT16572MQ | Polished Black Chrome | Polished Marquinia |
CRIIT16572VG | Polished Black Chrome | Polished Guatemala |
Screen colours may differ from the actual finish. Natural stone veining varies. Confirm the finish and knob on a physical supplier sample. Alternative finish and knob product images are reference illustrations.
Documents Supplied With SKU
Installation Instructions; Care and Maintenance; Technical Information and Dimensions; Finish and Knob Options; Spare Parts List; Manufacturer Data Sheet; Certifications and Quality; ISO 9001 Certificate; ISO 45001 Certificate.
