Shower Head For 200Mm Walls
SKU:
ID08633-20
Price:
€ 153.40
Quantity:
BLOCK COUPON:
Block
AVAILABILITY:
On Order
| PRODUCT INFORMATION ID08633-20 |

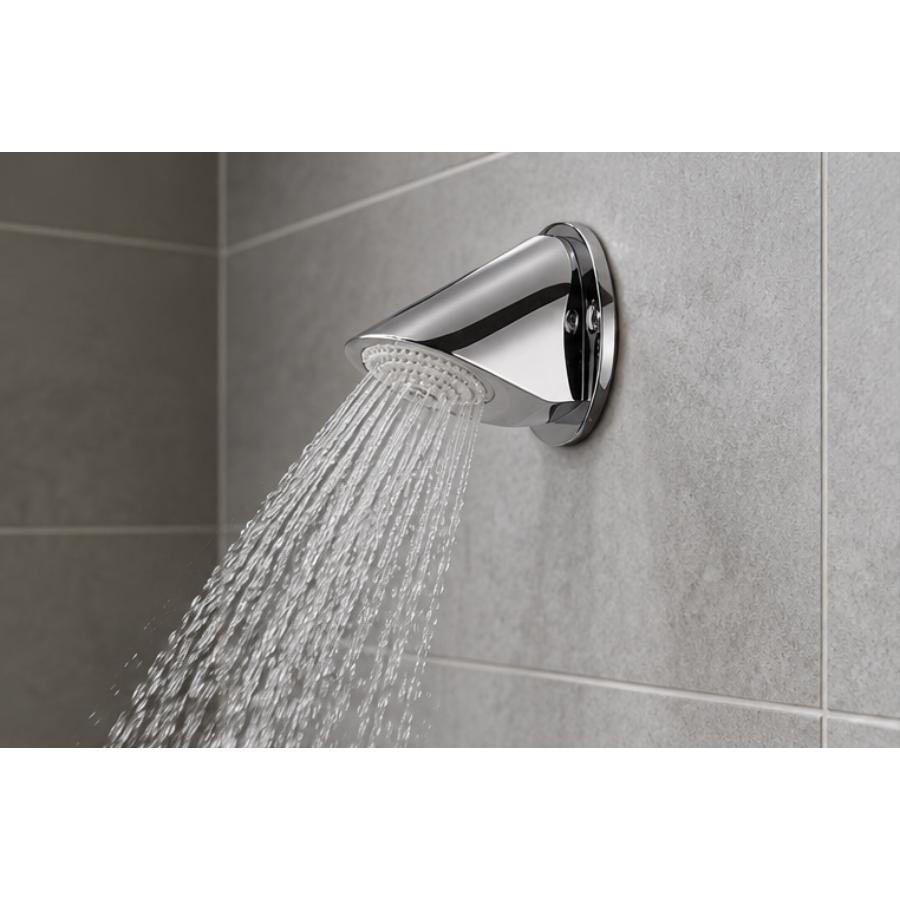

OLTREMURO Through-Wall Shower Head
Website SKU: ID08633-20 | Idral code: 08633-20
Product overview
Fixed shower head for installation through walls up to 200 mm thick. The room-facing head is chrome-plated brass; the brass supply pipe passes through the wall to a rear fixing flange.
Key features
- Chrome-plated brass shower head with brass supply pipe and flange.
- Flow regulator rated at 8 L/min.
- Rear-flange fixing screw and dowel included.
Technical details
Item | Detail |
Installation | Through-wall; wall thickness 200 mm maximum |
Flow rate | 8 L/min with flow regulator |
Operating pressure | 1-6 bar |
Water inlet temperature | 5-65 °C |
Water connection | G 1/2 at the rear |
Front dimensions | 60 mm flange diameter; 55 mm head diameter |
Projection | 50 mm maximum from the finished wall |
Supply-pipe dimension | 240 mm as shown in the manufacturer drawing |
Source: Idral 08633-20_DT.pdf, revision R2.
