Spout For 200Mm Walls
SKU:
ID08640-20
Price:
€ 169.92
Quantity:
BLOCK COUPON:
Block
AVAILABILITY:
On Order
| PRODUCT INFORMATION ID08640-20 |
OLTREMURO Through-Wall Basin Spout
Website SKU: ID08640-20 | Idral code: 08640-20
Product overview

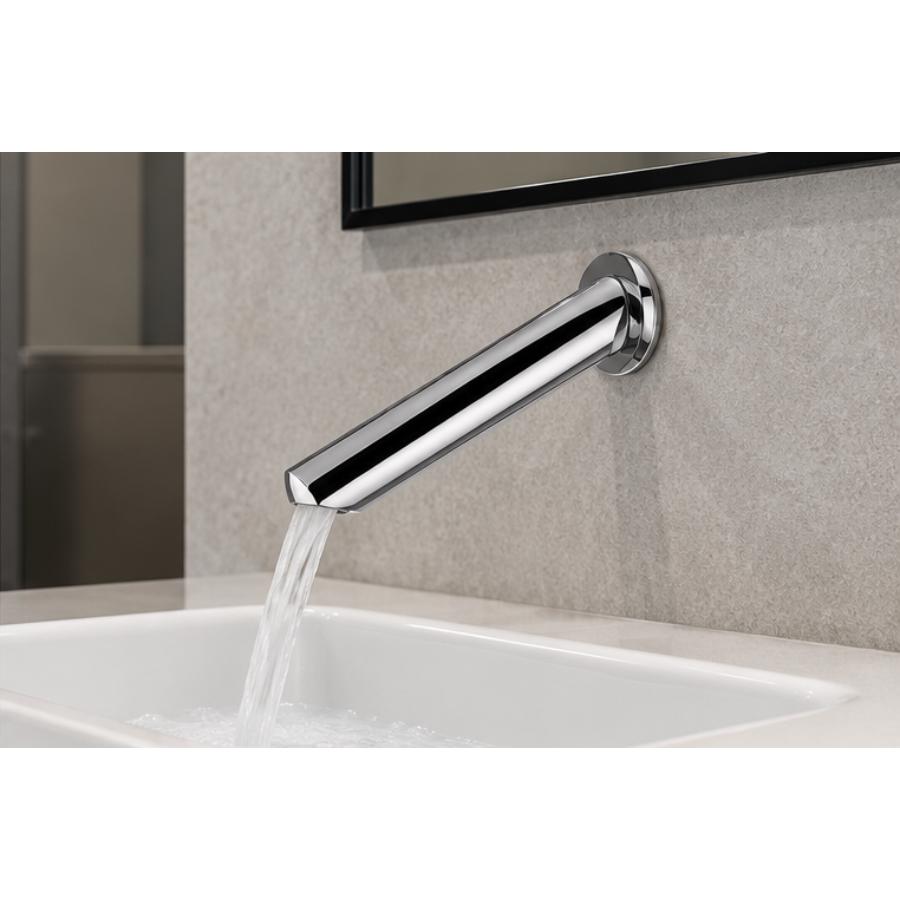

Wall-mounted basin spout for installation through walls up to 200 mm thick. The chrome-plated brass outlet projects downward over the basin. This is a separate outlet spout, not a tap with an integrated operating control.
Key features
- Chrome-plated brass spout with brass supply pipe and flange.
- Flow regulator rated at 6 L/min.
- Rear-flange fixing screw and dowel included.
Technical details
Item | Detail |
Installation | Through-wall; wall thickness 200 mm maximum |
Flow rate | 6 L/min with flow regulator |
Operating pressure | 1-6 bar |
Water inlet temperature | 5-65 °C |
Water connection | G 1/2 at the rear |
Front flange / spout | 60 mm flange diameter; 30 mm spout diameter |
Maximum forward reach | 145 mm from the finished wall, as drawn |
Vertical drop | 81 mm, as drawn |
Source: Idral 08640-20_DT.pdf, revision R1.
