| PRODUCT INFORMATION ID08651-20-30 |
OLTREMURO Through-Wall Timed Control
Website SKU: ID08651-20-30 | Idral code: 08651-20-30
Product overview
Push-button self-closing control for through-wall installation in walls up to 200 mm thick. The brass valve is installed behind the wall, leaving the chrome-plated brass push button accessible to the user. The 08651-20-30 variant has a fixed 25-second flow time at 3 bar.
Key features
- Brass valve body with chrome-plated brass push button.
- Valve body positioned behind the wall to protect it from damaging actions.
- Rear-flange fixing screw and dowel included.
Technical details
Item | Detail |
Installation | Through-wall; wall thickness 200 mm maximum |
Operation | Mechanical push button; self-closing |
Flow time - this SKU | 25 seconds at 3 bar; fixed / not adjustable |
Manufacturer tolerance | EN 816 tolerance quoted in the sheet: 30 +5/-10 seconds |
Operating pressure | 1-6 bar; recommended 2-4 bar |
Water inlet temperature | 5-65 °C |
Water connections | G 1/2 inlet and outlet |
Button / front flange | 30 mm button diameter; 50 mm flange diameter |
Projection / rear body | 39 mm button projection; 71 mm valve-body height |
Source: Idral 08651-20_DT.pdf, revision R1.

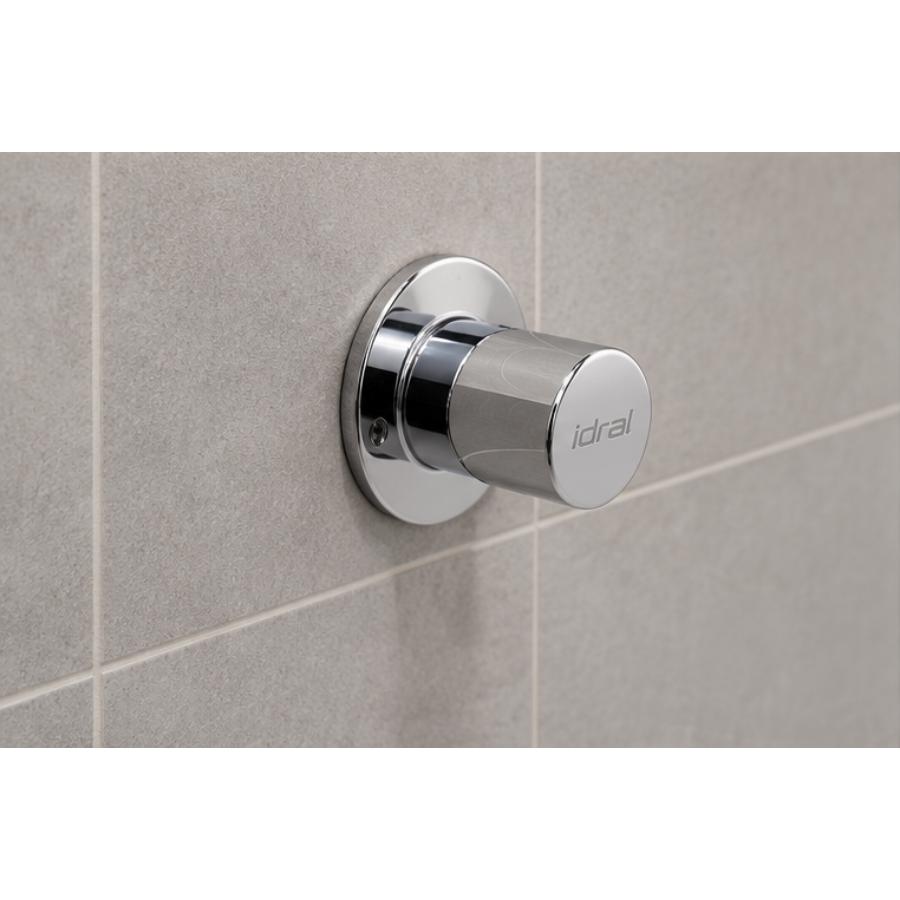

Manufacturer family photograph. The 25-second timing is specific to 08651-20-30.
