| PRODUCT INFORMATION ID08666-34-20 |
OLTREMURO Through-Wall WC Flush Valve
Website SKU: ID08666-34-20 | Idral code: 08666-34-20
Product overview

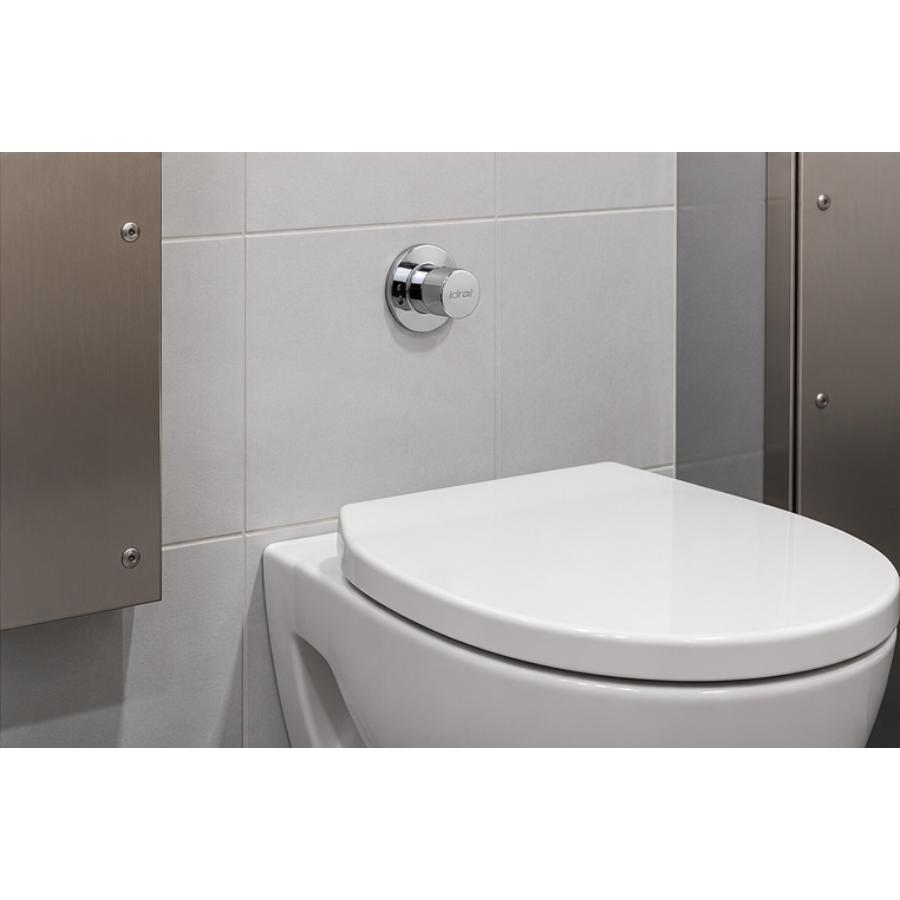

Push-button self-closing WC flush valve for through-wall installation in walls up to 200 mm thick. The brass valve body sits behind the wall, while the chrome-plated brass push button remains accessible from the WC side. This SKU is the G 3/4 connection version.
Key features
- Brass valve body with chrome-plated brass push button.
- Approximately 6-second cycle and 6 litres per cycle at 3 bar dynamic pressure.
- Adjustable flow rate; rear-flange fixing screw and dowel included.
Technical details
Item | Detail |
Installation | Through-wall; wall thickness 200 mm maximum |
Water inlet - this SKU | G 3/4 (not the G 1 alternative on the shared sheet) |
Operating pressure | 1-4 bar |
Water inlet temperature | 5-65 °C |
Flow time | Approximately 6 seconds at 3 bar |
Flush quantity | Approximately 6 litres per cycle at 3 bar dynamic pressure |
Flow rate | Adjustable |
Front dimensions | 30 mm button diameter; 50 mm flange; 39 mm projection |
Rear dimensions | 150 mm valve-body height; 25 mm outlet diameter |
Source: Idral 08666-20_DT.pdf, revision R1.
