| PRODUCT INFORMATION |

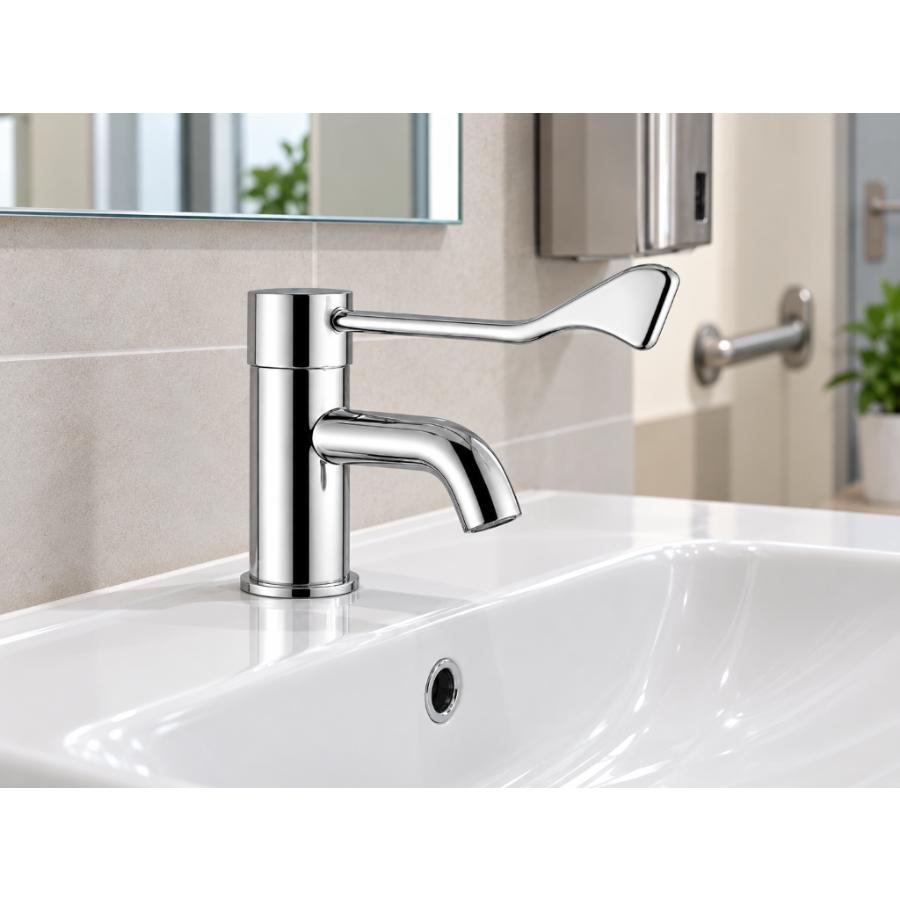

Thermostatic Basin Mixer - Clinic Lever
Bridgepoint SKU: ID900.12 | Idral code: 900.12
|
Product overview
Thermostatic progressive basin mixer with clinical lever. The chromed brass tap uses a TMV3 thermostatic progressive cartridge and a SANIJET antibacterial plastic flow straightener. It is supplied with 1/2-inch copper water supply pipes, non-return valves and filters. The outlet temperature range is 18 - 46 °C, with the maximum temperature factory-set to 38 ± 1 °C and adjustable.
Technical details
Item | Detail |
Mounting | Basin mounted |
Operation | Thermostatic progressive mixer; clinical lever |
Body / cartridge | Chromed brass; TMV3 thermostatic progressive cartridge |
Flow outlet | SANIJET antibacterial plastic flow straightener |
Operating pressure | 1 - 5 bar |
Water supplies | Hot 50 - 90 °C (55 - 60 °C recommended); cold 5 - 20 °C |
Outlet setting | 18 - 46 °C; factory maximum 38 ± 1 °C, adjustable |
Supply / protection | 1/2 in copper supply pipes; non-return valves and filters |
