| PRODUCT INFORMATION |

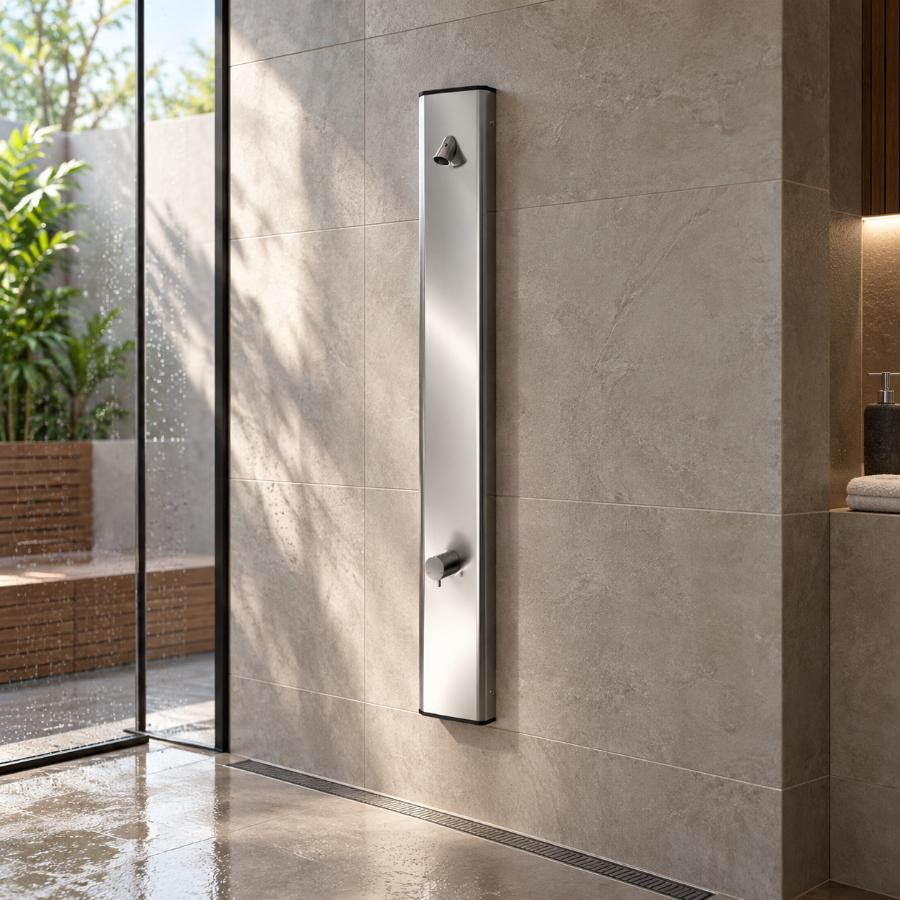

AISI304 Thermostatic Shower Panel - Handle Version
Bridgepoint SKU: IDM90H3-00000 | Idral code: M90H3-00000
|
Product overview
- Chromed brass tap. Key manufacturer data: Construction / components: Chromed brass tap; TMV3 thermostatic progressive cartridge; Progressive cartridge; Non-return valves; Integrated check valves; Chromed vandal-proof shower head; Water inlet connection Ø15 with ogive; Stainless steel AISI304; Operating pressure: Min 1 - max 5 bar; Temperature setting: 15 - MAX °C; factory maximum 38 +/- 1 °C, adjustable. M90H3-00000 is the handle version listed on the shared L90H3-00000 Idral technical sheet.
Technical details
Item | Detail |
Mounting | Wall mounted shower panel |
Operation | Thermostatic progressive control |
Construction / components | Chromed brass tap; TMV3 thermostatic progressive cartridge; Progressive cartridge; Non-return valves; Integrated check valves; Chromed vandal-proof shower head; Water inlet connection Ø15 with ogive; Stainless steel AISI304 |
Operating pressure | Min 1 - max 5 bar |
Water / temperature | Hot 50 - 63 °C (55 - 60 °C recommended); Cold 5 - 20 °C |
Flow / timing | See original Idral Technical Specification |
Variant / setting | M90H3-00000 is the handle version listed on the shared L90H3-00000 Idral technical sheet. |
