| PRODUCT INFORMATION |

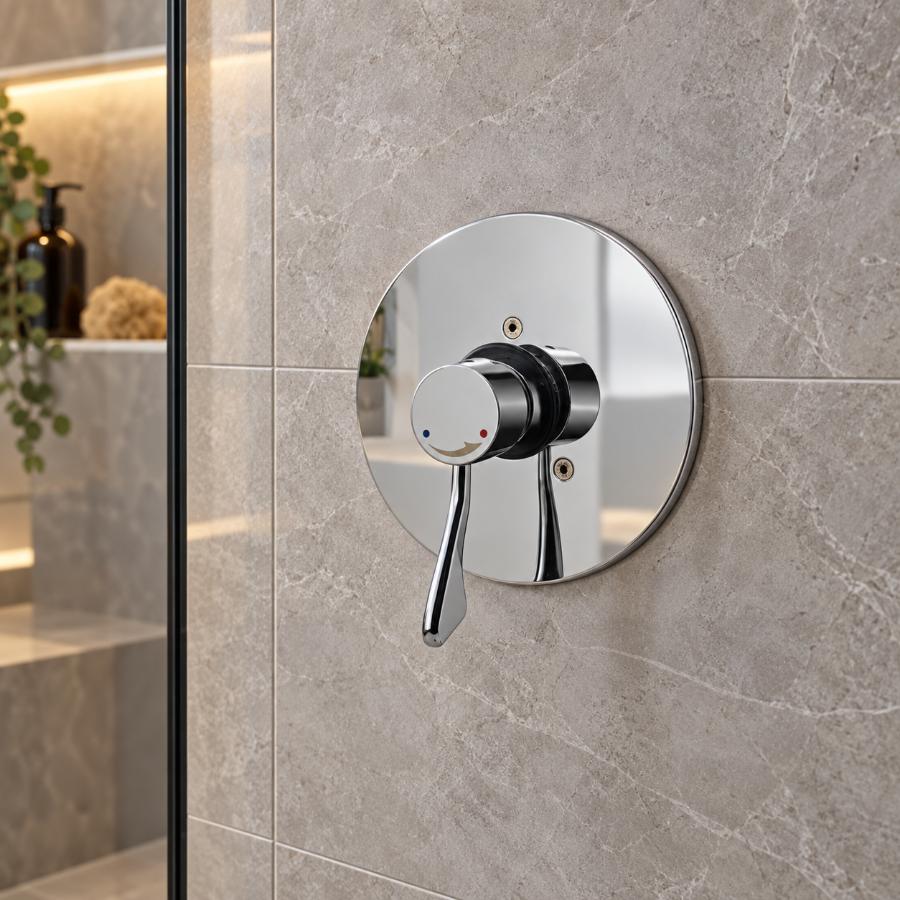

Concealed Thermostatic Shower Mixer - Anti-Stagnation
Bridgepoint SKU: IDM90H4-00000 | Idral code: M90H4-00000
|
Product overview
- Chromed brass tap. Key manufacturer data: Construction / components: Chromed brass tap; TMV3 thermostatic progressive cartridge; Progressive cartridge; Non-return valves and filters; Non-return valves; Integrated check valves; Chromed ABS flange; Operating pressure: Min 1 - max 5 bar; Temperature setting: 15 - MAX °C; factory maximum 38 +/- 1 °C, adjustable. M90H4-00000 is the anti-stagnation version listed on the shared 900.42 Idral technical sheet.
Technical details
Item | Detail |
Mounting | Concealed wall mounted |
Operation | Thermostatic progressive control |
Construction / components | Chromed brass tap; TMV3 thermostatic progressive cartridge; Progressive cartridge; Non-return valves and filters; Non-return valves; Integrated check valves; Chromed ABS flange |
Operating pressure | Min 1 - max 5 bar |
Water / temperature | Hot 50 - 63 °C (55 - 60 °C recommended); Cold 5 - 20 °C |
Flow / timing | See original Idral Technical Specification |
Variant / setting | M90H4-00000 is the anti-stagnation version listed on the shared 900.42 Idral technical sheet. |
